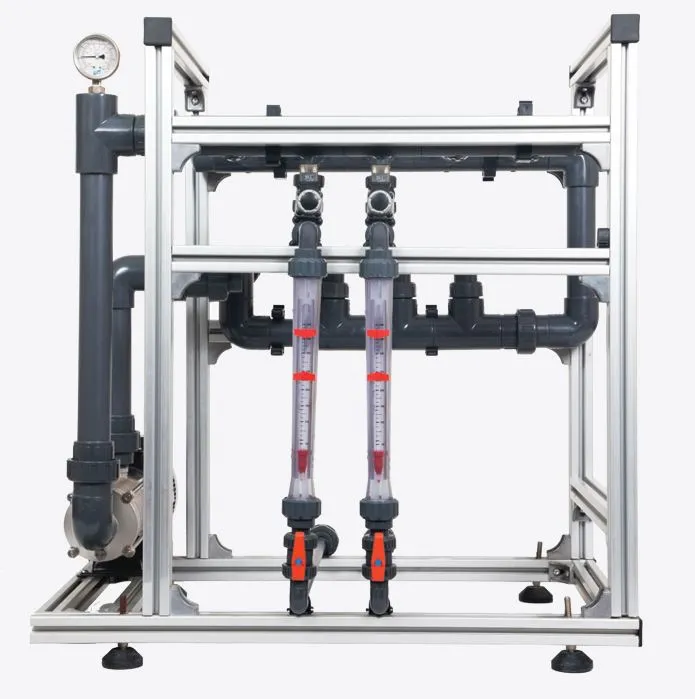

ORO FertiGem 2 Channel
Description
The FetriGem-2ch is a plug-and-play, fully configurable, simple-to-operate
two-channel fertilizer/acid dosing unit offering a perfect Fertigation solution for
open field sites fitted with electricity where injection of up to two fertilizer solutions
is needed. It ensures the highest efficiency with minimum investment - a highly
cost-effective solution for Fertigation.
The FetriGem-2ch can be connected to any external 24VAC controller to meet a vast
range of Fertigation needs with higher acuracy while economizing resources
(fertilizer, water and energy). The FetriGem-2ch accommodates two 158 GPH (600
l/h) electric dosing channels for fertilizer or diluted acid.
General Features:
Integrates easily into any existing irrigation system
Venturi operating principle - few moving parts
Schedule 80 PVC pipe and fittings
Supports up to 80 PSI main line pressure
2 x 158 GPH (600 l/h) 24VAC electric dosing
channels with manual override
220 / 440VAC 3-phase pump with on-board motor
protection and 24VAC remote start Relay
Visual flow meters and adjustable needle valves
for accurate dosing control
Aluminum, corrosion resistant frame with adjustable legs
