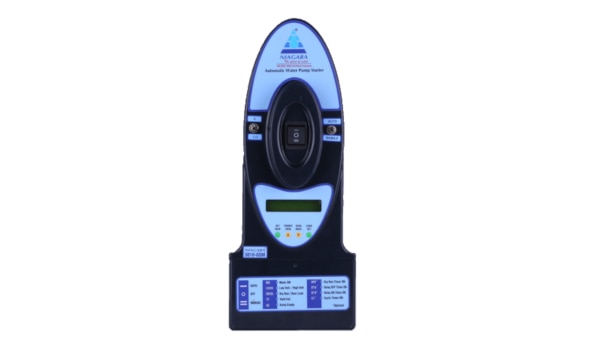

3010 GSM WLC BOD WITH WIFI
In stock
Description
3010 GSM WLC BOD WITH WIFI
NIAGARA - AGRICULTURAL AUTOMATION
Features
Top Tank Level Control.
Bottom Tank Level Control.
Regional Languages Select Option for Voice response.
Pump operation status
The available voltage at the site | Pump Load (current)
Motor ON/OFF Status with real-time
Power ON/OFF status as feedback to customers through SMS.
The pump can be operated from anywhere through mobile.
Low / High Voltage Cut-Off.
Dry Run / Over Load Protection.
Dry Run Restart Timer Facility.
In-built Delay on Timer, Cyclic Timer, RTC Timer, Maximum Run Timer.
Adjustable Voltage & Current Settings.
User Programmable Timer Settings.
LCD Display Indication.
Specifications
| Operating Voltage (AC) | 3∅ - 300V to 470V |
|---|---|
| Relay Load | 3∅ - 10 Amp |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Voltage for Float Sensor Min | 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Indirect Load *** | Any Size |
